Swage Terminals - 316 Stainless Steel - Metric Thread
316 grade stainless steel METRIC threaded swage stud terminals. Suits imperial size wire rope.

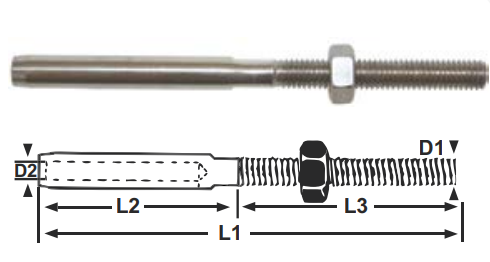

| Part Number | Thread (D1) – Wire Diameter (D2) | Overall Length L1 (mm) | Swage Length L2 (mm) | Thread Length L3 (mm) | Uni Die |
|---|---|---|---|---|---|
| RWB2017 | M5 – 1/8" (3.2 mm) | 85 | 31 | 40 | 4 |
| RWB2018 | M6 – 3/32" (2.4 mm) | 72 | 30 | 30 | 3 |
| RWB2019 | M6 – 1/8" (3.2 mm) | 90 | 36 | 40 | 4 |
| RWB2020 | M6 – 5/32" (4.0 mm) | 112 | 42 | 50 | 5 |
| RWB2021 | M8 – 5/32" (4.0 mm) | 112 | 42 | 50 | 5 |
| RWB2022 | M8 – 3/16" (4.8 mm) | 112 | 52 | 50 | 6 |
| RWB2023 | M10 – 1/4" (6.4 mm) | 155 | 63 | 80 | 8 |
