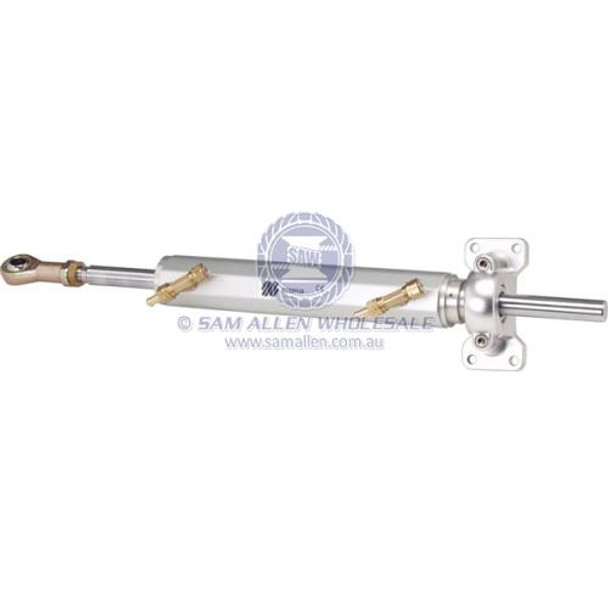

Ultraflex Hydraulic Inboard Cylinder – UC116-I

The Ultraflex UC116-I Hydraulic Inboard Cylinder is a compact and efficient solution for smaller inboard steering systems. Designed with a balanced configuration for equal turns port to starboard, it delivers reliable control and performance for vessels requiring lower rudder torque.

With a maximum rudder torque rating of 58 kgm (5,043 in-lbs), the UC116-I is ideal for light-duty marine applications. It is recommended for use with UP25 or UP28 series helm pumps and compatible with standard hose kits like Kit OB and Kit OB/R5. For flexible installations, 3/8" nylon tubing (Part No. 84101) can also be used.

## Features##

Features

• Designed for inboard engine steering systems
• Balanced design – equal lock-to-lock turns port and starboard
• Maximum rudder torque: 58 kgm (5,043 in-lbs)
• Recommended for use with UP25 or UP28 helm pumps
• Compatible with Kit OB and Kit OB/R5 hydraulic hose kits
• Optional 3/8" nylon tubing (Part No. 84101) for custom installations

## Features##

## Specifications##

Specifications

Included in Box

• 1x Ultraflex UC116-I Hydraulic Inboard Cylinder
• Mounting hardware
• Installation instructions
