Description

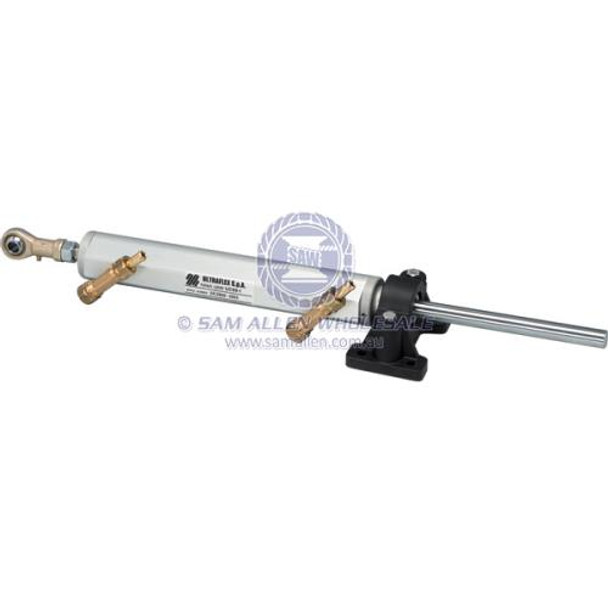

Ultraflex Hydraulic Inboard Cylinder – UC69-I
The Ultraflex UC69-I Hydraulic Inboard Cylinder is designed for smooth and reliable steering in compact inboard engine applications. Ideal for boats up to 8 metres (26 ft) with maximum speeds not exceeding 25 knots (25 mph), this cylinder offers dependable performance for a wide range of marine conditions.
Engineered with a balanced configuration, the UC69-I ensures equal lock-to-lock steering from port to starboard. It is recommended for use with UP20 series helm pumps and works seamlessly with Ultraflex Kit OB or Kit OB/R5 pre-assembled hydraulic hose kits.
## Features##
Features
- For inboard engines up to 8m (26 ft) and 25 knots (25 mph)
- Balanced operation – equal turns lock-to-lock
- Compact and reliable design
- Recommended for use with UP20 helm pumps
- Compatible with Kit OB and Kit OB/R5 hose kits
- Marine-grade durability and construction
## Features##
## Specifications##
Specifications
| Part No. | Description | Model | Volume |
|---|---|---|---|
| 83959 | UC69-I Inboard Cylinder – Made in Italy | UC69-I | 69 cc (4.2 cu. in) |
Included in Box
- 1x Ultraflex UC69-I Hydraulic Inboard Cylinder
- Mounting hardware
- Installation instructions
