Description

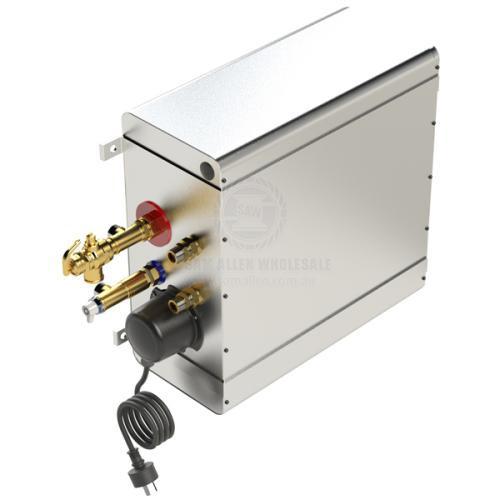

Water Heater - Rectangular - Stainless Steel
• Dual heating - Incoloy Electric Element and Heat Exchanger Coil.
• Incoloy* Electrical Heating Element is available in 850 Watts allowing hot water production when engine heat is not available.
• Heat Exchanger Coil features a large surface area designed to generate a large output of hot water.
• Insulation uses closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free).
• Water Heater Tank has both Pickling and Passivation treatment for increased anti-corrosion performance.**
• Adjustable safety thermostat.
• Pressure relief and non-return valve.
• Easy drain connection.
• Power cable supplied.
• Purpose built from high-quality materials for the marine environment:
Tank: AISI 316L Stainless Steel.
Heat Exchanger: AISI 316L Stainless Steel.
External Casing: AISI 304 Stainless Steel.
Mounting Brackets: AISI 304 Stainless Steel.
• RCM Certified: SAA-180560-EA.
• CE Certified EN 60335.
## Specifications##
| Specifications Chart |
|
| Part No. | 44303-SAM |
| Capacity | 20Ltr |
| Element | 1250W / 5.4A |
| Element Volts | 230V |
| Max Pressure | 700 kPa |
| Connectors | 1/2 inch |
| Dimensions (A x B x C) | 190mm x 517mm x 420mm |
| Note | * Incoloy refers to a range of superalloys designed for excellent corrosion resistance as well as strength at high temperatures. ** Both Pickling and Passivation are chemical treatments applied to the surface of stainless steel to remove contaminants and assist the formation of a continuous chromium-oxide, passive film which protect the Stainless steel from corrosion. |
