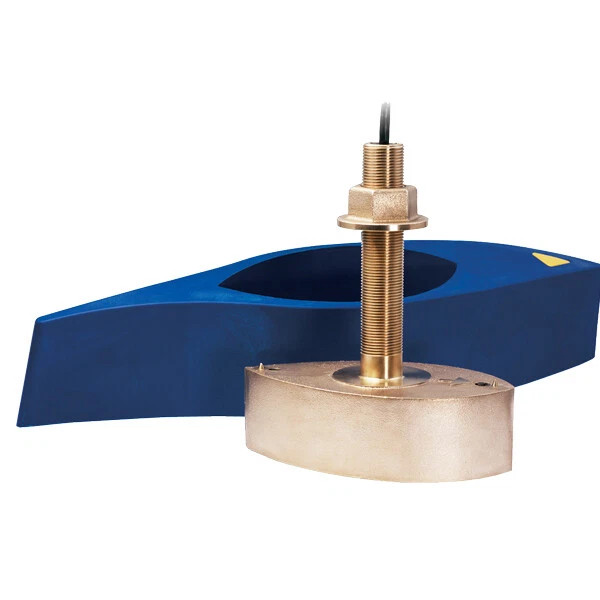

B275LH-W XSONIC AIRMAR Bronze Through hull (9 pin black) 000-13771-001

XSONIC B275LH-W AIRMAR Bronze Through hull

Name: B275LHW XSONIC Bronze Through hull (9 pin black) SIMRAD / Lowrance
Brand: Navico
SKU: 000-13771-001
Price: 2700 AUD
Availability: InStock
Rating: 5 (2 reviews)

Depth and fast-response water-temperature sensing
1 kW of power for great deep-water performance from the low frequency
Low frequency: 42 to 65 kHz

25° to 16° beamwidth
Maximum depth of 914 m (3000')

High frequency: 150 to 250 kHz

25° constant beamwidth
Maximum depth of 152 m (500')

123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column
Bronze housing with High-performance Fairing for optimal performance at higher speeds
Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
Patented Xducer ID^® technology

Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 10 m (33')
Common Use: Fishing, Commercial Fishing
Connector: Humminbird 21-Pin
Country of Origin: USA
Deadrise Range: Up to 28° with fairing
Display Connector: 21HB
Frequency Band: Low-High Wide
Functions: Depth, Temperature
Hole Size: 30 mm (1-3/16")
Housing Material: Bronze
Hull Material: Fiberglass or wood
Max Deadrise: Up to 20° with fairing
Max Deadrise Angle: 20°
Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
Max Vessel LOA: 8 m (25') and above
Mounting Style: Thru-Hull with Fairing
Power Rating: 1 kW
Sensor Connector: MMC
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Usable Shaft Length: 121 mm (4.75")
Weight: 7.3 kg (16 lb.)
High Frequency: 150-250 kHz
Mix and Match Series: 12-Pin Chirp
High-Wide Beamwidth: 25°
Low Frequency Beamwidth: 25°-16°
Low Frequency: 42-65 kHz
