Description

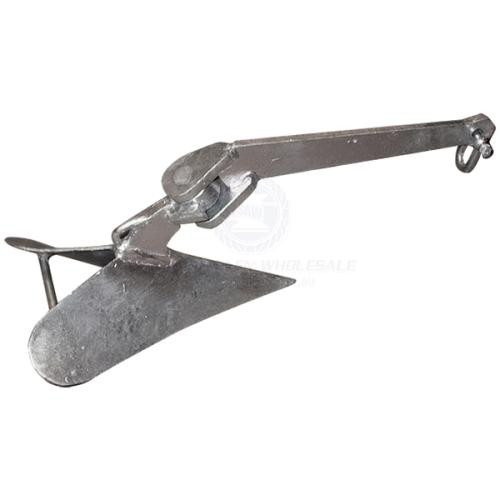

Anchor-Plough Gal
• Best suited to soft seabeds.
• Ideal in mud.
• Most common anchor for moored craft.
• Fitted with eye to attach retrieval line.
• Hot dipped galvanised finish.
## Specifications##

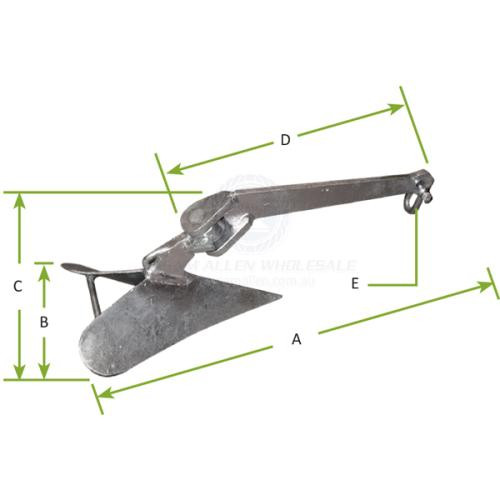

| Specifications Chart |
||||||||||
| Part No. | 12162-SAM | 12169-SAM | 12170-SAM | 12170A-SAM | 12171-SAM | 12172-SAM | 12173-SAM | 12174-SAM | 12175-SAM | 12176-SAM |
| Length | 950mm (A) | 1100mm (A) | 1170mm (A) | 1245mm (A) | 1270mm (A) | 1330mm (A) | 1445mm (A) | 1540mm (A) | 1510mm (A) | 1660mm (A) |
| Width | 415mm (B) | 495mm (B) | 530mm (B) | 540mm (B) | 540mm (B) | 585mm (B) | 645mm (B) | 700mm (B) | 680mm (B) | 810mm (B) |
| Weight | 27kg (60lb) | 48kg (100lb) | 55kg (120lb) | 65kg (140lb) | 73kg (160lb) | 82kg (180lb) | 91kg (200lb) | 113kg (250lb) | 100kg (200lb) | 160kg (350lb) |
| Approx. Boat Length | 14m | 18m | 20m | - | - | - | - | - | - | - |
| Depth (C) | 335mm | 445mm | 460mm | 480mm | 495mm | 535mm | 540mm | 610mm | 590mm | 710mm |
| Shank (D) | 705mm | 810mm | 845mm | 880mm | 945mm | 1000mm | 1055mm | 1100mm | 1080mm | 1100mm |
| Shackle (E) | 16mm | 22mm | 22mm | 22mm | 22mm | 22mm | 22mm | 22mm | 22mm | 25mm |
