Description

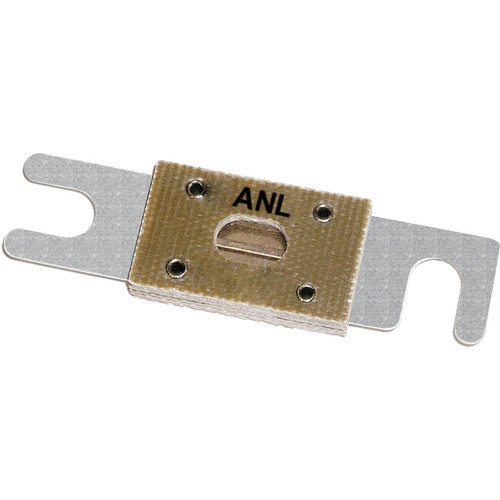

Blue Sea ANL Fuses
For use with Blue Sea Systems' ANL Fuse Blocks
Attributes:
- Type: Bolt-On
- Industry Classification: ANL
- Ampere Rating (A): 35 Amp
- Quantity: Single
- Slow Blow: No
Features & Benefits:
- Silver-Plated Connector Blades For Corrosion Resistance
- Ignition Protected Conforming To SAE J1171 Safe For Installation Aboard Gasoline Powered Boats 35 To 500 Ampere Only
- Visible Indication Of Blown Condition
- 6,000 Ampere Interrupt Capacity Satisfies ABYC Requirements For Main DC Circuit Protection On Large Battery Banks
- For Use With Blue Sea Systems' ANL Fuse Blocks
- No Supplier Warranty
##Specifications##
| Part Number | Amps | Ignition Protected | Maximum Voltage | Interrupt Capacity | Weight |
|---|---|---|---|---|---|
| SUR-5164-BSS | 35 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03kg |
| SUR-5165-BSS | 40 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03kg |
| SUR-5122-BSS | 50 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03 kg |
| SUR-5123-BSS | 60 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03 kg |
| SUR-5124B-BSS | 80 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.02kg |
| SUR-5125B-BSS | 100 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.02kg |
| SUR-5126-BSS | 130 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5127-BSS | 150 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5128-BSS | 175 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5129-BSS | 200 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5131-BSS | 250 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5133-BSS | 300 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03kg |
| SUR-5135-BSS | 350 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.03kg |
| SUR-5136B-BSS | 400 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5137B-BSS | 500 Amp | Yes | 32V DC | 6000A @ 32V DC | 0.05kg |
| SUR-5161-BSS | 600 Amp | No | 32V DC | 6000A @ 32V DC | 0.04kg |
| SUR-5163-BSS | 750 Amp | No | 32V DC | 6000A @ 32V DC | 0.04kg |
