Description

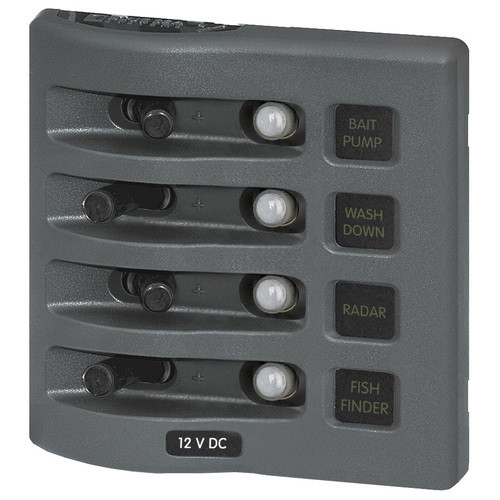

Blue Sea Waterproof 12VDC Circuit Breaker Panel
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Available in 4 and 6 circuit models
- UV stabilized and weather resistant faceplate
- Constructed from corrosion resistant materials
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Includes 4215 - 30 Square Format Labels
##Specifications##
| Specifications | |
|---|---|
| Weatherproof | Waterproof |
| Positions | 4 |
| Nominal Voltage | 12V DC 24V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12 or 24V DC |
| Material | Reinforced Polycarbonate |
| Height | 4.30in (109.22 mm) |
| Width | 4.25in (107.95 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 0.97lb (0.44 kg) |
| Weight | 0.97lb (0.44 kg) |
