Description

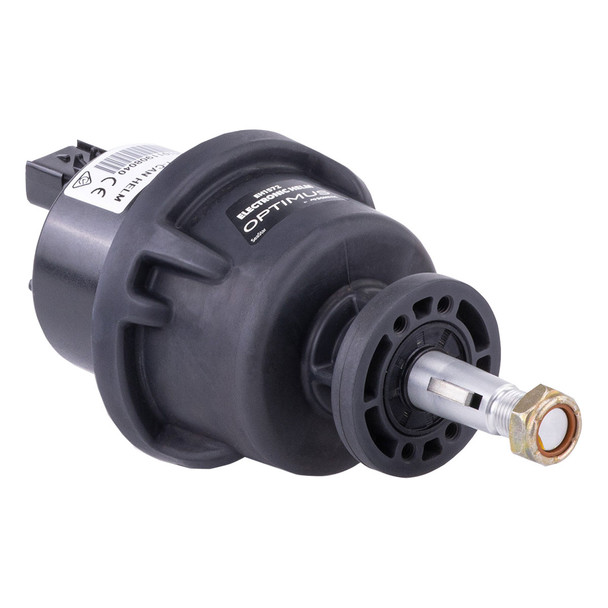

Dometic Optimus EPS & 360 Electronic Helms
The Optimus Electronic Helm system is designed to deliver precise, responsive, and intelligent steering control for modern marine applications. Engineered for performance and comfort, it provides adjustable steering sensitivity and wheel effort, allowing the operator to fine-tune steering feel based on speed and operating conditions. This advanced electronic helm eliminates hydraulic fluid at the steering position, improving reliability and reducing maintenance requirements.
## Features##
Features
- Adjustable helm turns and steering wheel effort for personalized comfort
- Speed-sensitive steering response for improved control at varying speeds
- Dual independent sensors and circuits for system redundancy
- Fully electronic helm with no hydraulic oil at the steering position
- Optional tilt helm configuration for ergonomic adjustment
- Optional second helm support for multi-station installations
- Easy installation with simple harness connection
- Designed for integration with Optimus EPS and 360 steering systems
## Features##
| Part Number | Specification | Net Weight (g) | Depth (cm) | Height (cm) | Width (cm) |
|---|---|---|---|---|---|
| 292192-BLA | EH1512-BLA | 2080 | 28.8 | 13.6 | 14.8 |
| 292195-BLA | EH1532-BLA | 4400 | 28.0 | 25.0 | 15.0 |
| 292204-BLA | EH1552-BLA | 4310 | 28.9 | 14.8 | 25.8 |
| 292206-BLA | EH1572-BLA | 2160 | 14.6 | 13.8 | 28.5 |
