Description

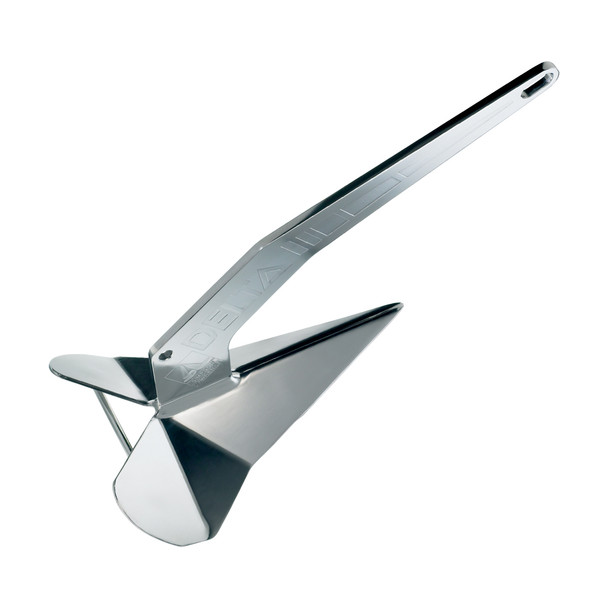

Lewmar Anchor - Delta Stainless Steel
The original Delta design from Lewmar is recognised the world over as an outstanding anchor with exceptional holding power. Manufactured to exacting standards the Delta is constructed from high grade manganese steel giving it maximum tensile strength. The unique shank profile and ballasted tip plus low centre of gravity and self-righting geometry ensure that the Delta anchor will set immediately. The design profile and ballasted tip also means that the anchor self launches with ease. The Delta’s consistent and reliable performance is backed by a lifetime guarantee against breakage, has Lloyd’s Approval as a High Holding Power anchor and is specified as the primary anchor used by numerous national organisations worldwide. The Delta anchor is also made available in premium grade Duplex/High Tensile stainless steel.
|
Part Number
|
Weight kg
|
Weight lb
|
Suggested Chain Size mm
|
A mm
|
B mm
|
C mm
|
D mm
|
E mm
|
|---|---|---|---|---|---|---|---|---|
| 146242-BLA | 10 | 22 | 8 | 695 | 308 | 12 | 526 | 283 |
| 146244-BLA | 16 | 35 | 8 | 812 | 360 | 12 | 614 | 334 |
| 146246-BLA | 20 | 44 | 10 | 877 | 389 | 16 | 663 | 361 |
| 146248-BLA | 25 | 55 | 10 | 945 | 417 | 16 | 713 | 384 |
| 146250-BLA | 32 | 70 | 10 | 1026 | 455 | 26 | 774 | 417 |
1 Damage by deformation or bending is not covered by this guarantee.
2 Lloyd’s Test Certificate is available for individual anchors by arrangement.
