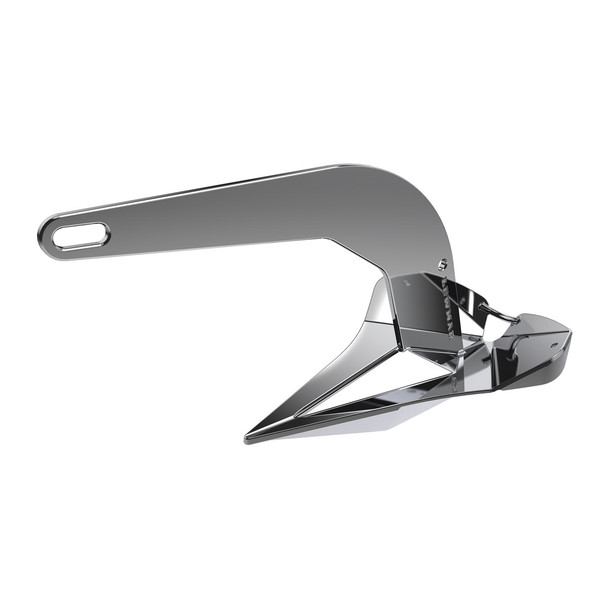

Lewmar Anchor - Epsilon Stainless Steel
The Epsilon super-high holding power anchor builds upon the legendary Delta anchor’s robustness and quality. Its concave fluke and ballast keel ensure market-leading holding power and rapid setting, while maintaining self-launching characteristics with Lewmar bow rollers and retaining the same shank geometry as the original Delta.
Time-proven materials are used throughout the range: manganese steel for the galvanised version, and a 316/2205 stainless steel combination for the stainless version.
Features
• Super-High Holding Power
• Galvanised and stainless steel versions
• Anti-snagging design
• Optional righting roll bar for sailboat application
• Full range from 6-63kg
• Ballasted tip for fast setting
• Fully compatible with Lewmar bow rollers
1 Damage by deformation or bending is not covered by this guarantee.
2 Lloyd’s Test Certificate is available for individual anchors by arrangement.
| Part Number |
Anchor Weight kg
|
lb
|
A mm
|
B mm
|
C mm
|
D mm
|
E mm
|
|---|---|---|---|---|---|---|---|
| 146274-BLA | 6 | 14 | 483 | 271 | 8 | 337 | 258 |
| 146276-BLA | 10 | 22 | 573 | 332 | 10 | 401 | 306 |
| 146278-BLA | 16 | 35 | 670 | 376 | 12 | 469 | 358 |
| 146280-BLA | 20 | 44 | 720 | 406 | 12 | 505 | 387 |
| 146282-BLA | 25 | 55 | 778 | 438 | 16 | 545 | 417 |
| 146284-BLA | 32 | 70 | 839 | 474 | 16 | 590 | 452 |
| 146286-BLA | 40 | 88 | 907 | 512 | 20 | 636 | 485 |
