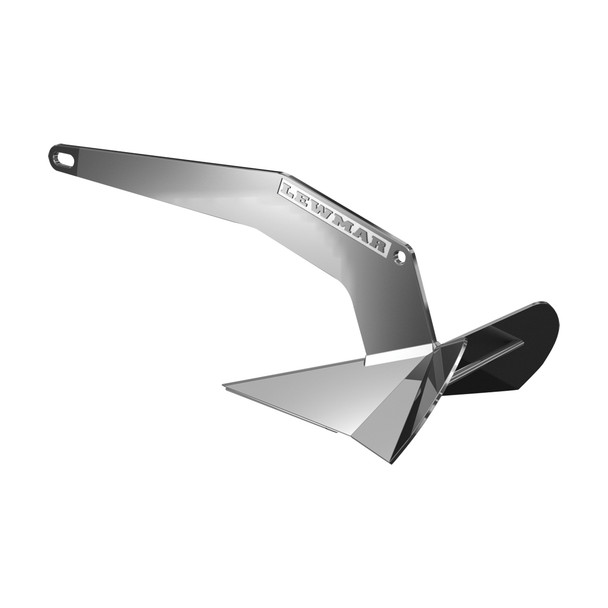

Lewmar Anchor - DTX Stainless Steel
The DTX® anchor fills the gap between the existing galvanised and stainless steel Delta® anchors. Made from 316 grade stainless steel, The DTX® anchors feature exceptional anti-corrosion performance and the enhanced aesthetics that stainless anchors offer. Utilising lead ballast encapsulated within the tip of the anchor to achieve the perfect centre of gravity, the DTX® offers the initial bite and holding reliability that users of Delta® anchors have come to expect. Every DTX® anchor is certified to Lloyd’s Ordinary Holding Power standard and is warranted for 3 years against breakage.
1 Damage by deformation or bending is not covered by this guarantee.
2 Lloyd’s Test Certificate is available for individual anchors by arrangement.
| Part Number |
Weight kg
|
Weight lb
|
Suggested Chain Size mm
|
A mm
|
B mm
|
C mm
|
D mm
|
E mm
|
F mm
|
|---|---|---|---|---|---|---|---|---|---|
| 146370-BLA | 6kg | 14lb | 6mm | 593mm | 265mm | 10mm | 450mm | 243mm | 254mm |
| 146372-BLA | 10kg | 22lb | 8mm | 695mm | 310mm | 12mm | 526mm | 282mm | 292mm |
| 146374-BLA | 16kg | 35lb | 8mm | 812mm | 362mm | 12mm | 614mm | 328mm | 339mm |
| 146376-BLA | 20kg | 44lb | 10mm | 877mm | 392mm | 16mm | 663mm | 357mm | 268mm |
| 146378-BLA | 25kg | 55lb | 10mm | 945mm | 415mm | 16mm | 713mm | 387mm | 298mm |
| 146380-BLA | 32kg | 70lb | 10mm | 1023mm | 453.5mm | 20mm | 775mm | 425mm | 432mm |
| 146382-BLA | 40kg | 88lb | 10mm | 1103mm | 489mm | 20mm | 883mm | 437mm | 461mm |
| 146384-BLA | 63kg | 139lb | 13mm | 1270mm | 567mm | 25mm | 963mm | 508mm | 537mm |
