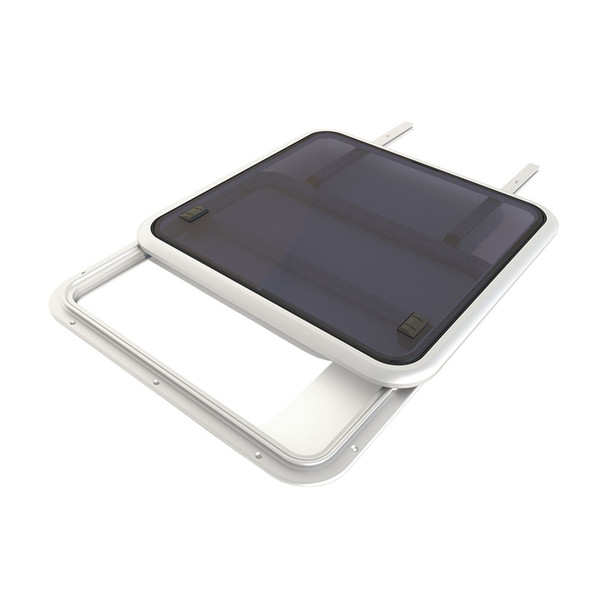

Lewmar Hatch - Pilot White
Lewmar’s Pilot hatch range has been designed for use in areas such as above helm positions, cockpit roofs or fly-bridge areas. Complementary styling cues have been taken from the Low and Medium Profile hatch range to create a harmonious look.
Features
• Opens up and ventilates enclosed areas
• Conveniently placed opening handlebar mechanism which rotates to seal down the hatch
• Sliding technology from Lewmar’s racing hardware track systems, ensuring minimum friction
• CE approved for Area 3
• Motorised versions available contact your Territory Manager.
Accessories
SP17170241 Track Cam Block & Track Follower
|
BLA Code
|
Size
|
Frame Colour
|
Lower Frame Flange mm
|
Outside X x Y L x W mm
|
Cut Out X1 x Y1 L x W mm
|
Radii R mm
|
Radii R1 mm
|
Height Z mm
|
Acrylic Colour Tint
|
Acrylic00a0 mm
|
Track Length00a0 mm
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 170175-BLA | 78 | White | 15mm | 844 x 790mm | 770 x 720mm | 72.5mm | 42.5mm | 29mm | Grey | 10mm | 638mm |
| 170176-BLA | 78 | White | 15mm | 844 x 790mm | 770 x 720mm | 72.5mm | 42.5mm | 29mm | White | 10mm | 638mm |
