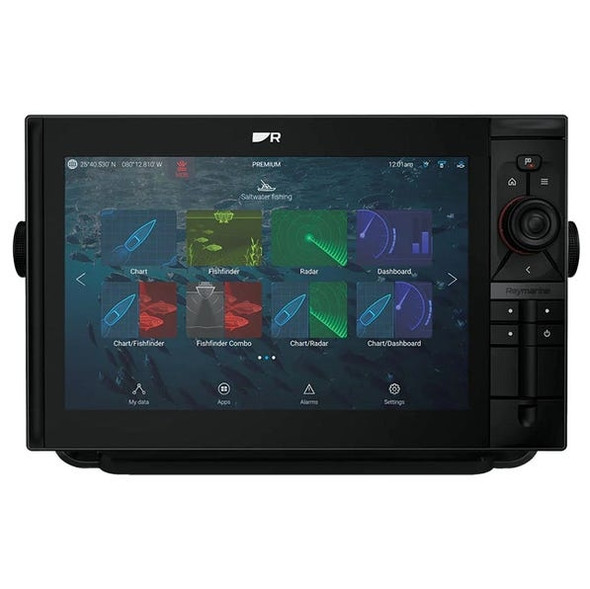

Raymarine AXIOM 2 PRO 9 RVM - MFD Hybridtouch

Axiom 2 Pro combines Chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system.

With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system.

Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ a simple touchscreen and keypad experience.

Axiom 2 Pro RVM Chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology.

RealVision MAX ups your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.

## Features##

Features

• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
• Find more fish with built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
• Smart backlighting and an ambient light sensor automatically adjusts display brightness for day and evening
• Create your own Axiom 2 Pro system with multiple networked Axiom displays
• Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems

## Features##

## Specifications##

Specifications

Connections

• 2 RayNet (10/100/1,000 Mbits/s) ports
• NMEA 2000 connection: DeviceNet connector
• Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
• Bluetooth: v4.0
• Accessory connection: USB Micro B
• Internal storage: 64GB Solid State
• External storage: 2 front-mounted MicroSDXC card slots
• Digital Video and Audio: HDMI Out Micro connector type D
• Analog video connections: BNC Analog video input (on power cable)
• Analog audio connections: RCA connectors via power cable
• External GPS antenna: TNC connector

Physical

• Dimensions (Trunnion mounted)  Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Power

• Power consumption @ 12 V dc  Axiom Pro 9: 33.12 W
• Operating voltage range 8 V dc to 32 V dc
• Nominal supply voltage 12 V dc / 24 V dc
• Off current @ 12 V dc 11 mA (0.13 W)
• LEN (NMEA 2000 Load Equivalency Number) 1
• Current: 5 A
• Fuse rating: 15 A

Environmental

• Operating temperature: -25°C to +55°C
• Storage temperature: -30°C to +70°C
• Relative humidity: Up to 93% @ 40°C
• Waterproof rating: IPx6, IPx7

LCD

• Size (diagonal) Axiom 2 Pro 9: 9.0"
• Ratio Axiom 2 Pro 9: 16:9
• Resolution: Axiom 2 Pro 9: 1280 x 720 HD
• Viewing angle: Top 88° / Bottom 88° / Left 88° / Right 88°
• Type: IPS (In-Plane Switching)
• Colour depth: 24-bit
• Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2
• Number of simultaneous touches: 1 to 16

GPS (GNSS)

• Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
• WGS-84 (alternatives can be selected on the MFD)
• Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Channels Track: up to 28 satellites simultaneously
• Antenna: Internal - Ceramic chip mounted near the top of the unit
• GNSS compatibility: GPS, Galileo, GLONASS, Beidou
• Almanac Update: Automatic
• Signal Acquisition: Automatic
• Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
• Operating frequency: 1574 MHz to 1605 MHz
• Refresh rate: 10 Hz (10 times per second)
• Time to first fix from cold start < 2 minutes

Sonar

• Power output: RealVision MAX high CHIRP sonar channel: 600 Watts RMS
• Sonar channels:
• RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) / 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
• RealVision MAX Depth range: 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
• 1 kW Depth range: 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)

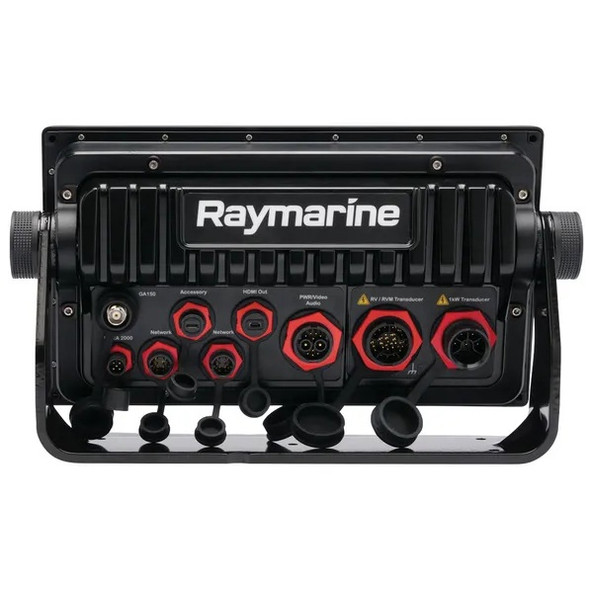

• Connections: 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector

## Specifications##

## In the Box##

What's in the box?

Axiom 2 Pro box contents

1. Display unit
2. User Configurable Keypad
3. Suncover
4. Gasket
5. Trunnion knobs (x 2)
6. Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
7. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
8. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10. Mounting fixings x4
11. Documentation
12. Power/Video/Audio cable 1.5 m (4.92 ft)
