Description

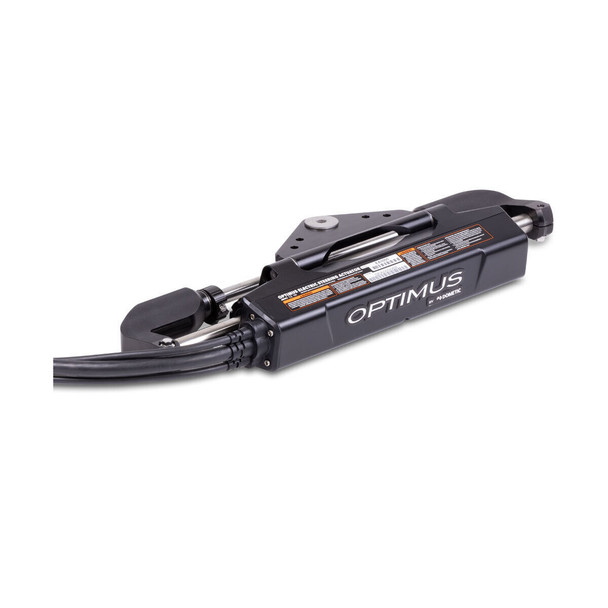

Optimus Electric Steering Actuator
NEXT GENERATION ELECTRONIC POWER STEERING
The Optimus Electric Steering Actuator mounts directly on the outboard in place of the existing hydraulic cylinder. The powerful drive train, position sensor, brake, and electronics are fully embedded within the actuator, eliminating the need for a Pump Control Module, hydraulic pump, hoses, cylinders, and steering fluid.
This system represents the first complete bolt-on electronic steering solution for outboard engines, compatible with single, twin, triple, and quad engine configurations from 150 horsepower and above.
The integrated electro-mechanical actuator combines steering control, power source, and transmission into a single unit, marking a major advancement in marine steering technology. It is also compatible with advanced systems including autopilot integration, joystick control, and GPS anchoring functionality.
## Features##
Features
- Fully electric remote mount outboard steering actuator
- Compatible with single, twin, triple, and quad outboard engine setups
- Integrated electronics sealed and potted for marine protection
- Eliminates need for hydraulic pumps, hoses, fluid, and PCM
- Reduces installation time (approx. 2–4 hours)
- Low maintenance system with no hydraulic fluid required
- Compatible with Optimus/360 steering system features
- Supports variable helm turns and steering effort control
- Joystick compatible with SeaStation GPS anchoring
- Compatible with SeaWays autopilot systems
- Brushless DC motor with inverted planetary gearset for durability
- Replaceable bulkhead harness design
- System architecture: Helm, CANtrak, and actuator with harness
- Joystick system architecture: Joystick, gateway, and harness
## Features##
## Specifications##
|
Part Number
|
Description
|
|---|---|
| 292320 | Seastar Electric Steering Actuator |
| 292321 | Seastar Elec Steer Actuator Rev Plate |
| 292324 | Seastar Stb Pivot Brkt Elect Actuator |
| 292325 | Seastar Port Pivot Brkt Elect Actuator |
| 292326 | Seastar Slave Eng Pivot Brkt Elect Actuator |
| 292327 | Seastar Slv Eng Pivot Brkt Elec Actu Sh |
## Specifications##
