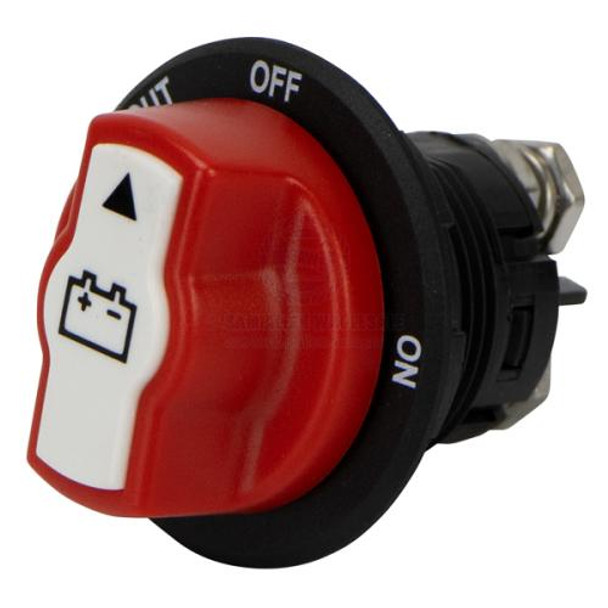

Battery Switch Mini On/Off Removable Knob M6 Studs
The RELAXN Mini Battery Isolator Switch is a compact 2-position switch designed for reliable battery management in marine and automotive applications. Featuring brass terminals, heavy-duty plastic construction, and a removable knob, this mini switch allows for safe and convenient control of electrical systems up to 32V DC.
##features##
Features
- 2-position switch: On / Off for easy battery isolation.
- Brass terminals for secure and durable electrical connections.
- Heavy-duty plastic body designed for long-lasting performance.
- Removable knob: Turn knob to the out position to remove for added security.
- Compact design ideal for marine and automotive applications.
- Operating temperature range: -20°C to +50°C.
- CE certified for quality assurance.
##features##
## Specifications##
Specifications
| Part No. | 530780 |
| Max Volts | DC 32V |
| Continuous Rating | 100 Amp |
| Intermittent Rating (3 Mins) | 150 Amp |
| Dimensions (Dia. x D) | 45mm x 55mm |
| Cut Out (Dia.) | 29mm |
| Terminal Studs | M6 x 2 |
| Note | Do not turn the switch off while the engine is running. |
